Corton Flow

Article source:http://www.zhengchiyw.com Release time:2016-02-23 15:21 Browse times:

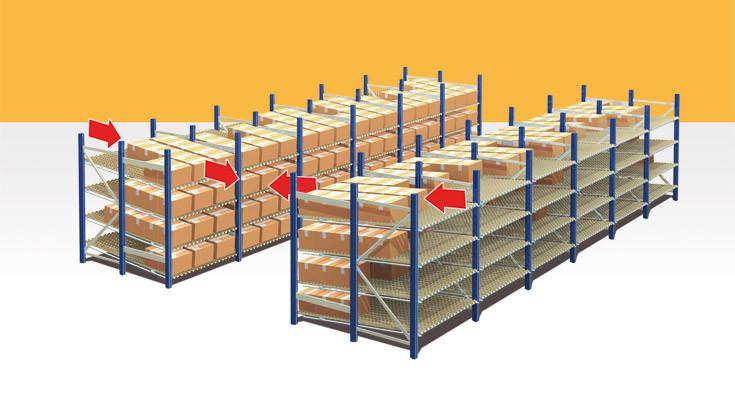

Fluent rack structure characteristics: fluent rack fluent directly connected to the front and rear cross beam and the middle beam supported on, beam directly hung on the pillars, fluent mounting inclination inclination depending to container size, weight and fluent frame of depth, usually take 5% ~ 9%. The bearing capacity of fluent wheel for 6kg/ only, when heavy goods, can be in a raceway installation 3-4 root fluent. Usually in the depth direction of every 0.6m is provided with a support beam to increase the stiffness of the fluent. When the race is long, the available separation plate rolling off. Pick up the goods need to install the end of brake deceleration, reduce the impact.
1. Fluent rack is evolved from the shelves of medium, shelves each layer before and after the beam is arranged between the aluminum alloy fluent strip or sheet metal fluent, a slope (2.5 ~ 3 DEG) placed, by the weight of the goods, cargo FIFO. Access to convenient, suitable for the assembly line on both sides of the conversion process, picking and other places of the distribution center, can be matched with the electronic tag, realize information management of goods.
2 fluent roller adopts high quality thermoplastic plastics, small friction coefficient, excellent impact resistance, firmness and fragile. In its chemical properties, good acid, moisture. The roller shaft is made of stainless steel, carrying capacity of 6Kg/ axis.
3. Fluent shelves of specifications and bearing: height h is less than or equal to 2200mm, length L is equal to or less than 2000mm three column width: W is equal to or less than 1800mm, four column width: W is less than 2800; shelf unit with each layer bearing in general less than 1000kg. A main and auxiliary frame, the main frame is only a piece of the auxiliary frame column.
